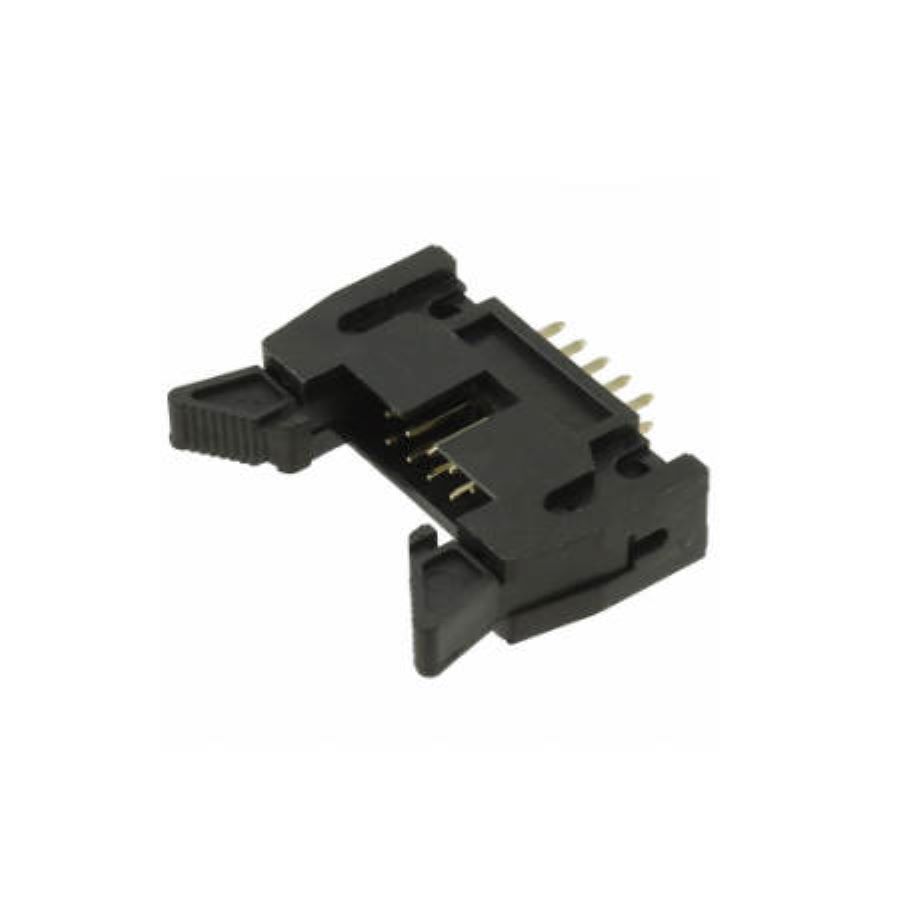

61201022021
Manufacturer:
Wurth Electronics
Mfr.Part #:
61201022021
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Width | 32 mm |
| Termination | Through Hole |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 8.3 mm |
| Packaging | Tray |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Insulation | Insulated |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Contact Gender | Male |
| Mating Post Length | 5.7 mm |
| Termination Post Length | 3.4 mm |
Stock: 7634
Distributors
pcbx
pcbxUnit Price$0.56938
Ext.Price$0.56938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56938 | $0.56938 |
| 10 | $0.55741 | $5.57410 |
| 25 | $0.53739 | $13.43475 |
| 50 | $0.51809 | $25.90450 |
| 100 | $0.46166 | $46.16600 |
| 300 | $0.41037 | $123.11100 |
